สาย Copper Series Cat6 UTP 4/24 Indoor Blue - พรประภา เคเบิ้ลเทรด | ผู้จัดจำหน่ายสายสัญญาณภาพ เสียงและสายเคเบิลคุณภาพสูง

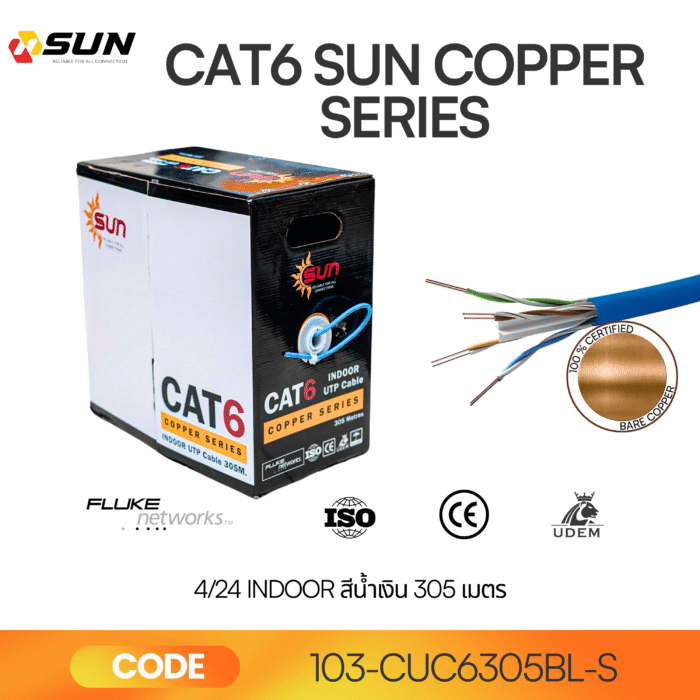

CAT6 U/UTP standard LAN cable – SUN brand.

Supports high-speed network and CCTV systems.

High-performance LAN cables from the SUN brand are manufactured to international standards ANSI/TIA-568-C.2, ISO/IEC 11801, IEC 61156, and BS EN 50288. They support applications requiring stable data transmission, high speed, and reduced signal interference, making them suitable for indoor installations.

🔧 Cable structure

Electrical conductor: Solid bare copper, 0.51 mm².

Conductor insulation: 0.90 mm thick high-density polyethylene (HDPE) plastic.

Number of wires: 4 pairs (8 wires) Standard color:

White-blue / Blue

White-Orange / Orange

White-green / Green

White-brown / Brown

Outer casing: 0.55 mm thick PVC plastic, 6.0 mm overall diameter.

Interior equipment:

A separator improves signal separation efficiency.

Ripcord for easy wire cutting.

Shell color: Can be produced according to customer requirements.

⚡ Electrical properties

list	Value
Electrical resistance of a conductor	≤ 8.3 ohms / 100 meters
Resistance imbalance	≤ 2.5%
Insulation resistance	≥ 5000 megaohms/kilometer
Electrical capacitance between pairs of wires	≤ 5.6 nanofarads / 100 meters
Maximum current	1 ampere
Maximum voltage	36 volts DC
Impedance	100±15 ohms

Performance

Supports frequencies up to 250 MHz, providing a strong, consistent signal and reducing interference between lines.

Examples of important benchmark values:

Frequency (MHz)	IL (dB/100m)	NEXT (dB)	PS NEXT (dB)	ELFEXT (dB)	PS ELFEXT (dB)
1.0	≤ 2.0	≥ 74.3	≥ 72.3	≥ 67.8	≥ 64.8
100	≤ 19.8	≥ 40.8	≥ 38.8	≥ 31.8	≥ 28.8
250	≤ 32.8	≥ 36.3	≥ 34.3	≥ 19.8	≥ 16.8
