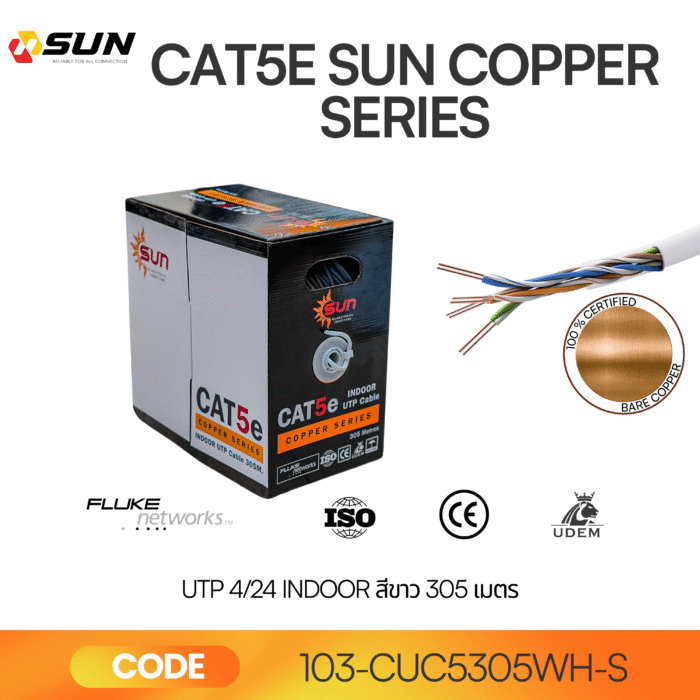

Copper Series Cat5e UTP 4/24 Indoor White Cable

รหัสสินค้า: 103-CUC5305WH-S Category:

SUN brand CAT5E U/UTP standard LAN cable.

Testing standards:

  • ANSI/TIA-568-C.2
  • ISO/IEC 11801
  • IEC 61156
  • BS EN 50288

Electrical specifications

  • The resistance of the conductor is ≤ 9.38 ohms / 100 meters.
  • Electrical resistance imbalance ≤ 2.5%
  • Withstand voltage ≥ 500 volts, AC voltage for 1 minute.
  • Resistance between pairs of wires that are different ≥ 160 megaohms / 100 meters
  • The capacitance between wire pairs is ≤ 5.6 nanofarads/100 meters.
  • Operating voltage 1 ampere
  • Maximum voltage 36 volts

Technical performance

Freq (MHz)  Zin (Ω)  IL (dB/100m)  RL (dB)  NEXT (dB)  PS NEXT (dB)  ELFEXT (dB)  PS ELFEXT (dB)
1.0  100±15  ≤2.04  ≥20.0  ≥65.30  ≥62.30  ≥64.00  ≥61.00
4.0    ≤4.05  ≥23.0  ≥56.27  ≥53.27  ≥52.00  ≥49.00
8.0    ≤5.77  ≥24.5  ≥51.75  ≥48.75  ≥45.94  ≥42.94
10.0    ≤6.47  ≥25.0  ≥50.30  ≥47.30  ≥44.00  ≥41.00
16.0    ≤8.24  ≥25.0  ≥47.40  ≥44.40  ≥40.00  ≥37.00
25.0    ≤10.35  ≥24.3  ≥44.30  ≥41.30  ≥36.00  ≥33.00
31.25    ≤11.61  ≥23.6  ≥42.90  ≥39.90  ≥34.12  ≥31.12
62.5    ≤16.99  ≥21.5  ≥38.30  ≥35.30  ≥28.28  ≥25.28
100    ≤21.98  ≥20.1  ≥35.30  ≥32.30  ≥24.00  ≥21.00
